Skid Steer Genius Videos and Troubleshooting

Skid Steer Genius Videos and Troubleshooting

Link to Skid Steer Genius How to video page:


Product specific videos for troubleshooting:

Super Controllers
SG-SC-102
SG-SC-202

FV-309-704  Standard Switch Kit

SG-PP-8-2P / SG-PP-14-2P /
How to operate on a Skid Steer
https://www.youtube.com/watch?v=iYJfUBhyEYs
Modifying SG-PP-14-2P for use on a John Deere Machine
https://www.youtube.com/watch?v=b4qeifh6xGg
Single Solenoid Controls Overview

SG-CB-1000
SG-CB-2000X-100
SG-CB-4014
SG-CB-6000-100

Genius Electrical
SG-JS-100

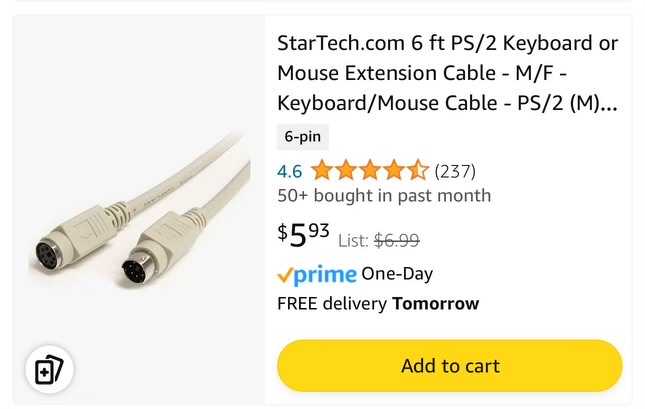

cable extension - when a customer needs a longer cable



Super controller joystick cable replacement through SSGenius Per Rob the are not recommending mounting the super controller underneath, now behind the seat, if the cable gets distroyed, they now can replace it. See link below
Super Controller Joystick Cable - SG-JS-20 - Replacement Cable Only. – Skid Steer Genius

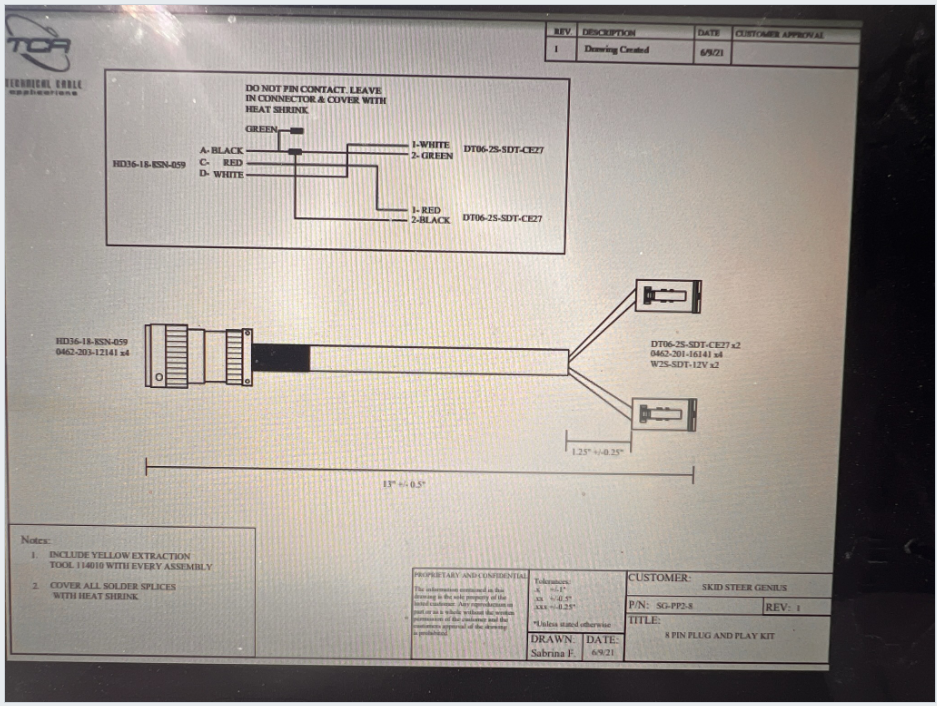

SG-PP-8-2P - Cat wiring


Electrical pinout

"JOHN DEERE P SERIES: You will need to remove two of the pins to operate properly.  We jumper C to E and D to F to allow choice of controls but the new P models sense the connection as a short and shut the hydraulics off.
I had to remove the red wire on pin E (right joystick) and white wire on Pin F (left joystick), that solved the machine sensing a short and disabling the hydraulics.
It's hard to see in the picture but on the picture of the 2 Deutz connectors the pink/black wires are for the right joystick and the green and white wires are for the left joystick.   I did move the Ground from A-B "

If you encounter someone with the new Cat P series or Devalon machines and they report their 14 pin attachment is not functioning, it is likely NOT the attachment.
As it turns out, while they have the same pin configuration as a D series cat, there is a coil that checks for specific resistance. If that resistance is not met, the machine will throw a code.
SSG is working on this with a 14 pin to 14 pin adapter that has an 8 ohm resistor in it to get around there. It is in the testing phase now.
